I made this demo to quickly demonstrate how to use Blade3D, a 3D rendering API I'm working on. It doesn't make full use of the API, but it does give you a starting point if you want to make your own projects using (this version of) Blade3D. Hopefully I can make a slightly more comprehensive introduction to the API with full documentation in the near future, but for anyone willing to look at the underlying code, it should be pretty easy to accomplish whatever you need with just this template.
Something that isn't included in the template is a .obj to .ptm converter, which is provided here. It expects the .obj to include material references (not the .mtl file itself) and for the mesh to be triangulated.
1 comment
.jpg)

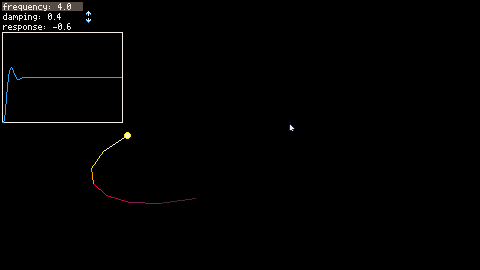

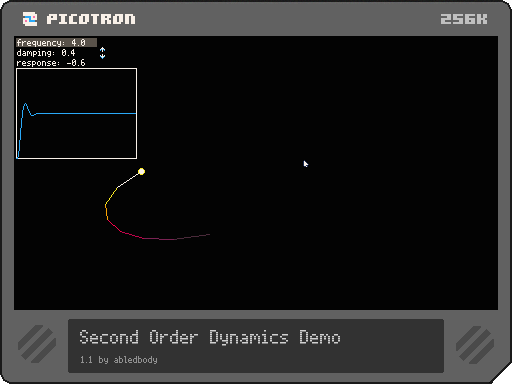

Arrow keys to edit the variables.
Click (and hold, if you like,) to set the target position.
If you're just interested in the API, you can grab it here:
[hidden]
local Sod = {}
Sod.__index = Sod
function Sod:update(dt)
local target_vel = (self.target-self.prev_target)/dt
self.pos += self.vel*dt
self.vel += (
self.target
+self.k3*target_vel
-self.pos
-self.k1*self.vel
)*dt/self.k2
self.prev_target = self.target
end
function Sod:config(frequency_rads,damping,response)
local ifreq = 1/frequency_rads
self.k1,self.k2,self.k3 =
damping*ifreq*2,
ifreq*ifreq,
response*damping*ifreq
end
function sod(pos,frequency_rads,damping,response)
local o = {
pos = pos,
prev_target = pos,
target = pos,
-- In case pos is a vector, or any other arithmetically capable data
-- type, *0 guarantees we get the zero position of whatever type pos is.
vel = pos*0,
}
setmetatable(o,Sod)
o:config(frequency_rads,damping,response)
return o
end |
0 comments
A clone of The Sound of Sorting I made just to test and diagnose my QuickSort algorithm.
It may sound a little ridiculous on web, since the array access sounds tend to get lumped together into far fewer frames.
- Press z to step
- Hold z to disable step mode
- Press x to switch sorting algorithm
- Use up and down to control the number of entries.
- Use left and right to control the speed.
7 comments
The response to this has been pretty positive, so I'm throwing this demo up here on the forums.

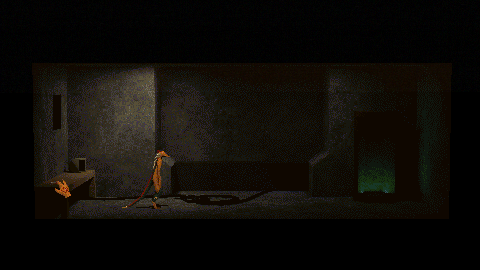

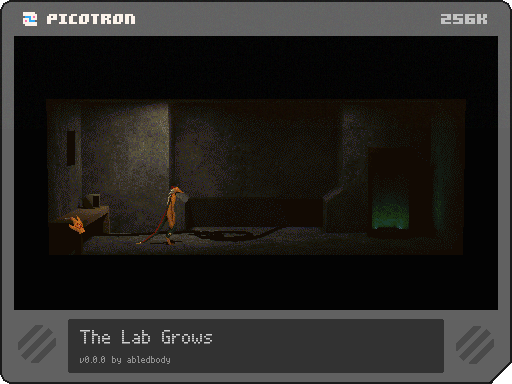

This cart is a prototype for a point and click adventure with pre-rendered 3D graphics and a custom palette.
Included in this cart are elgopher's require module and snowkittykira's error explorer module
6 comments
32 synthesized instruments for your composing pleasure.
#able_ipack_01
If you've got requests for the next instrument pack, let me know!
Instrument names:
4 comments
I made it as easy to use and as performant as I could. You certainly won't be getting the performance boost normally associated with an ECS, since that particular optimization doesn't exist in picotron, but you'll still get the architecture.

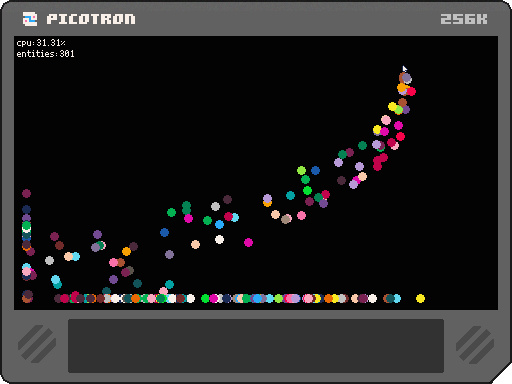

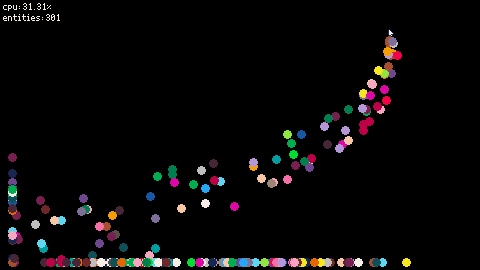

Here's a demo which showcases its use.
You can find the latest version and the documentation on github.
https://github.com/abledbody/picotron-ECS-framework/releases/
https://github.com/abledbody/picotron-ECS-framework/blob/main/README.md
3 comments
Does what it says on the tin. Lets you see what's eating up your CPU time. If you make an extension to this, I'd love to see it.
API:
profile.enabled(detailed,cpu) Turns on and off profiling tools.
detailed: Whether or not to display results of profile calls.
cpu: Whether or not to display total CPU usage.
profile(name,linger) Starts or stops a profile. Accumulates between profile.draw calls. Extremely cheap when profiling is disabled.
name: Arbitrary display name indicating which profile to start or stop.
linger: Whether or not the profile should linger even if the profile is never called between draws.
profile.draw() Draws profile and CPU information to the screen if they are enabled. Extremely cheap when profiling is disabled.
profile.clear_lingers() Clears any lingering profile information.
Example:
include("profiler.lua")
profile.enabled(true,true)
local frames = 0
function _update()
profile("_update")
[ [size=16][color=#ffaabb] [ Continue Reading.. ] [/color][/size] ](/bbs/?pid=146421#p) |
0 comments
