PicoVox

version a2

Old versions

Cart #gesadupito-0 | 2021-04-05 | Code ▽ | Embed ▽ | License: CC4-BY-NC-SA
60

PicoVox is a voxel art creation program for Pico8.
--Use your mouse to add, remove, and recolor blocks on an isometric grid.
--Render ray-traced images and rotation animations of your pieces
--Save and share your creations in the form of data PNGs
--Import data PNGs from others by dragging them onto PicoVox

saving and import

Click the disk icon to save your work. A PNG will be generated that contains the voxel data for your scene. This file can be posted on the BBS or social media.

To open a file, simply drag the image on top of the running PicoVox application window.
(Saving and opening may require standalone Pico8 and not work on the BBS web-player. TBD)

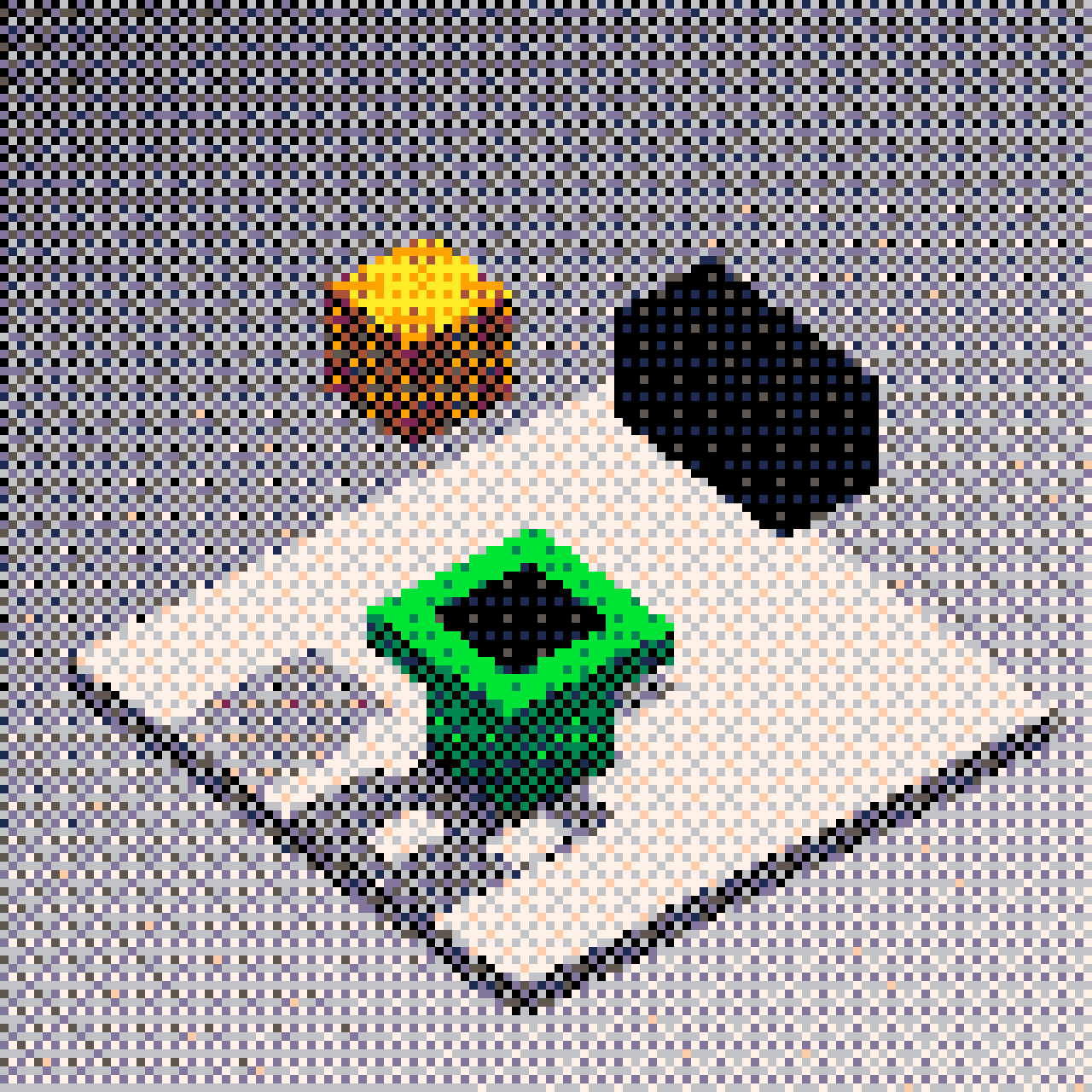

See example save image below:

mouse support

PicoVox requires a mouse to function properly, though it may work "ok" with a touch screen. With a mouse and the block tool selected, left mouse places blocks and the right mouse deletes them. The scroll wheel can be used to zoom in and out and clicking and holding the scroll wheel will cause the model to rotate.
If you do not have a right mouse button, you can delete blocks by selecting the black color with the red slash in the color palette.

rendering

PicoVox can render images in a dithered Pico8 palette using ray-tracing. Special rendering features include transparency, reflection, glowing, as well as shadows and ambient occlusion.
Click the camera tool to start a render, which will save to the desktop by default when complete. (Generally rendering takes around 10 seconds and will be interactively displayed while it progresses.)

The loop icon will render a rotation animation as a gif to your desktop by default. Please note that this will take a long time to render all of the frames. Currently, the animation render cannot be canceled so please remember to save your work before starting.

new scene

To change the width, depth and height of the scene, click the "clear scene" tool. Note that this will erase your current file.

tools

block: add blocks
brush: paint color
cam: render
floor: toggle floor
disk: save
bucket: fill color
hand: pan
loop: render animation
doc: clear scene
?: info text

blocks

solid block
transparent block
mirror block
bright block

colors

select color
black is erase

keys

arrow keys rotate view
z+arrow: pan
shift+up/down: zoom
x: quick render

wmouse

left: add block
right: del block
middle: rotate
scroll wheel: zoom
shift+middle: look at
