Hi, friends!

Here's a demo featuring 5 glorious channels of lo-fi audio! Making a chipbreak-style tune in Pico-8 has been in the back of my mind ever since @carlc27843 discovered the undocumented PCM channel, and now I can finally check this off my list! After almost 2 years! 😅

All the drums are samples, triggered by watching the tracker with stat(56). The samples are then fed to the PCM channel by monitoring the buffer with stat(108). I'd originally planned on building a 5-channel tracker from this demo, but I had a tough time getting the samples to sync consistently. I'm not sure if that's because of my own shortcomings, or maybe because as @zep literally said, the sync is "not perfect".

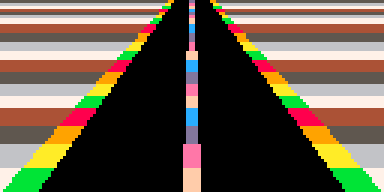

For the gfx, the star animations are also triggered by stat(56), whenever a snare sample is played. The road is just one gigantic image using a palette cycle. It looks like this:

Anyway, I had a lot of fun putting this together. I hope you like it! 😃

Special thanks to @pahammond for GEM, which helped keep this cart under the compressed limit!

P#123686 2023-01-05 01:09 ( Edited 2023-01-09 09:34)

2

Here's how this works if you want to try it!

Chopping Samples

First, you'll need to chop your samples in the DAW of your choice. Pico-8's tracker runs at 120Hz. Some conversions:

  • 1 tracker tick = 1/120 second
  • 1 note = whatever speed (# of tracker ticks) your sfx sequence is / 0.120 = milliseconds per note
  • BPM = 7200 (# tracker ticks per minute) / # notes per beat / sfx sequence speed

eg, if your sfx sequence has a speed of 16 and each note in the sequence represents 1/4 beat, then your song is running at 112.5 BPM.

To avoid crackling, samples should end at the 0-crossing, or better, fade out the end. I applied a 10ms fade to the end of each of my samples for this song.

Serializing Samples

Next, you'll need to convert your samples to raw (headerless), monaural unsigned 8-bit 5512Hz PCM files. Audacity is a FOSS DAW that can get the job done. The samples can be any size, but it's worth keeping in mind that the PCM buffer has a max of 2048B (0.372s @ 5512Hz). At least for this demo, they should be 1024B or smaller for percussion, so you have headroom to buffer the next sample while the current one is still being consumed. My implementation here is very primitive, it will crop samples to the appropriate length, but loads them one-shot, so it can't continue to stream a sample larger than the available buffer space.

Next, you can run them through this utility cart:

Cart #kajatisuzi-0 | 2023-01-06 | Code ▽ | Embed ▽ | License: CC4-BY-NC-SA
2

The cart will serialize the PCM file into an escaped string (using @zep's escape_binary_str() and print it to stdout, your clipboard, and optionally, a specified output file.

The cart accepts the following CLI params:

  • -i path to input file
  • -p path to output file
pico8 -run -i "mysample.raw" kajatisuzi.p8.png

I'm not sure if this is just an Audacity thing, but I noticed that my raw sample files always included a null character followed by a random (garbage?) character at the end. The null character makes sense because there should usually be one at the end of a file, but I'm not sure about the following garbage character. the utility cart will chop both of these characters off the end of the serialized strings since they would cause problems when fed to the PCM buffer.

Sample Playback

The load_samples() function is responsible for watching the tracker and feeding data to the PCM channel. See the cart below for a demo and more info. It requires several params, including a tracker-like set of tables. The function is "pure" so you can name them however you want, but you'll need something like this:

--serialized samples we created earlier
samples = { "..." }

--equivalent of tracker "sfx" sequences
sequences = {
  {
    --sequence speed
    s = 16,
    --up to 32 "notes" referencing sample indexes
    1, nil, 1, nil, 1, nil, 1, nil,
    1, nil, 1, nil, 1, nil, 1, nil,
    1, nil, 1, nil, 1, nil, 1, nil,
    1, nil, 1, nil, 1, nil, 1, nil,
  }
}

--equivalent to tracker "patterns"
patterns = {
  --references to sequence indexes
  1,...
}

and then something like:

while true do
  --music is playing,
  --load samples
  if stat(57) then
    l_pat_idx,
    l_note_idx
    =
    load_samples(patterns, sequences, samples, stat(54), stat(56), l_pat_idx, l_note_idx)

  --no music,
  --and empty pcm buffer
  elseif stat(108) == 0 then
    --load first sample
    l_pat_idx,
    l_note_idx
    =
    load_samples(patterns, sequences, samples, 0, -1, -1, -1)

    music(0)
  end
end

If load_samples() detects a sample needs to be buffered, it will multi-return the pattern index (from the patterns table) and note index (from the sequence table) of the sample. You'll need to keep track of these as global variables, so you can pass them back to the function on the next update.

To summarize the function, the params are the above sampler tables, data about the tracker's current position (eg, from stat(54) and stat(56)), and the last pattern/note buffered by the function. It looks for the next note in the sampler tables, determines how many empty bytes need to be fed to the PCM buffer so the sample plays (hopefully) on-time, determines how long the sample can be based on when the next-next note is and/or how many available bytes remain in the buffer (eg, 2048 - stat(108)), and then sends the empty byte padding and sample to the buffer.

Worth mentioning, since this is unsigned 8-bit audio, the 0-crossing is actually 127 rather than 0! (Um, or is it 128??? 😅)

Caveats

load_samples() assumes that whatever pattern # is playing in the tracker (reported by stat(54)) has a corresponding pattern (with an index + 1) in the sampler patterns table. So, if your tracker song starts at pattern 8, your sampler patterns table will need indexes of 9+.

I didn't write any way to track repeats into the function, so if you use it like in the example cart and the tracker repeats back to a lower pattern #, the cart will just stop playing samples.

The draw/debug func in the example cart is a complete mess. Actually, the whole thing is probably a mess, lol

Cart #dawinosuto-0 | 2023-01-06 | Code ▽ | Embed ▽ | License: CC4-BY-NC-SA
2

Anyway, I hope someone finds this useful. Please let me know if you make anything with this! 😃
