One of the things that's been very much on my mind as I've been learning PICO-8 and making my first full game project in it has been how to use the console's limited palette, and particularly how to ensure that everything I put on screen is clear and straightforward to read. It is very easy when designing user interfaces to make something that looks fine in a screenshot viewed in a well-lit room on a bright monitor by someone who knows where and what everything is, but obscure or confusing in actual play under the varied conditions which your audience plays in.

Nothing substitutes for testing, but the number one idea that I've used to try to make sure I start with something easily-read or close to it is contrast ratios - essentially, how much difference in brightness there is between two colors.

The hex codes and names for colors 0-15 I copied from the wiki page on Graphics - the names being from Roman Zolotarev's PICO-8 palette reference. The hex codes for colors 128-143 (the extended palette - see the draw state section of the wiki page on Memory) I measured myself with paint.net from screenshots, and I picked names for them using https://klaash.github.io/xkcdcolorpicker/ as guide/inspiration.

The brightness numbers and the guidelines for difference of brightness need a little bit of explaining.

WCAG2 and contrast ratios

The Web Contrast Accessibility Guidelines (WCAG) 2.0 have a section on the visual presentation of text and images of text. There are no guidelines as far as I am aware for purely graphical elements - how could there be? - but I use the three thresholds that WCAG2 describes as the basis for how I do this.

  • For large-scale text, WCAG2 minimum contrast requires a contrast ratio of at least 3:1.
  • For ordinary text, WCAG2 minimum contrast requires a contrast ratio of at least 4.5:1.
  • For large-scale text, WCAG2 enhanced contrast requires a contrast ratio of at least 4.5:1.
  • For ordinary text, WCAG2 enhanced contrast requires a contrast ratio of at least 7:1.

So: what is a contrast ratio? Click the link on the page, and it gives a formula in terms of relative luminance:

contrast ratio = (L1 + 0.05) / (L2 + 0.05)

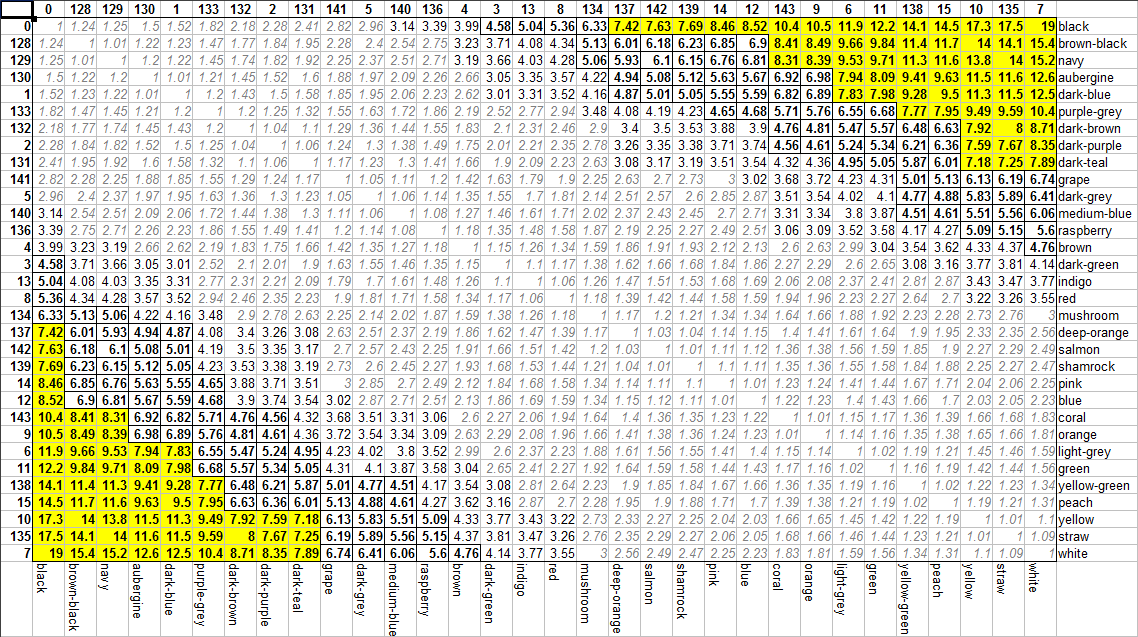

What is relative luminance? Click the link on the page, and it gives ... a collection of equations that are more complex than I want to get into, but trace all the way back to the 8-bit R, G, and B values used in sRGB color spaces, which I'm pretty sure is what most everything uses, including PICO-8. I plugged the formulae into a spreadsheet and managed to get out the contrast ratio data I wanted, which I then compared to these three thresholds from WCAG2 and used conditional formatting to display them all nicely.

...then I spent a long time thinking about how to make this easier to use as a general reference, because the difficulty of accessing information is probably what makes these things less commonly thought about.

What I've got right now probably isn't perfect. But I remembered a bit of math that might make things more straightforward: logarithms.

ln contrast ratio = ln (L1 + 0.05) - ln (L2 + 0.05)

By recording brightness as a logarithm of the relative luminance term in the equation (kind of like how magnitudes of stars in the sky are recorded), I turn a ratio into a simple subtraction. For a pair of colors to have sufficient contrast, these log-L brightnesses merely need to differ by enough to meet the necessary contrast ratio:

  • ln 3 = 1.10
  • ln 4.5 = 1.50
  • ln 7 = 1.95

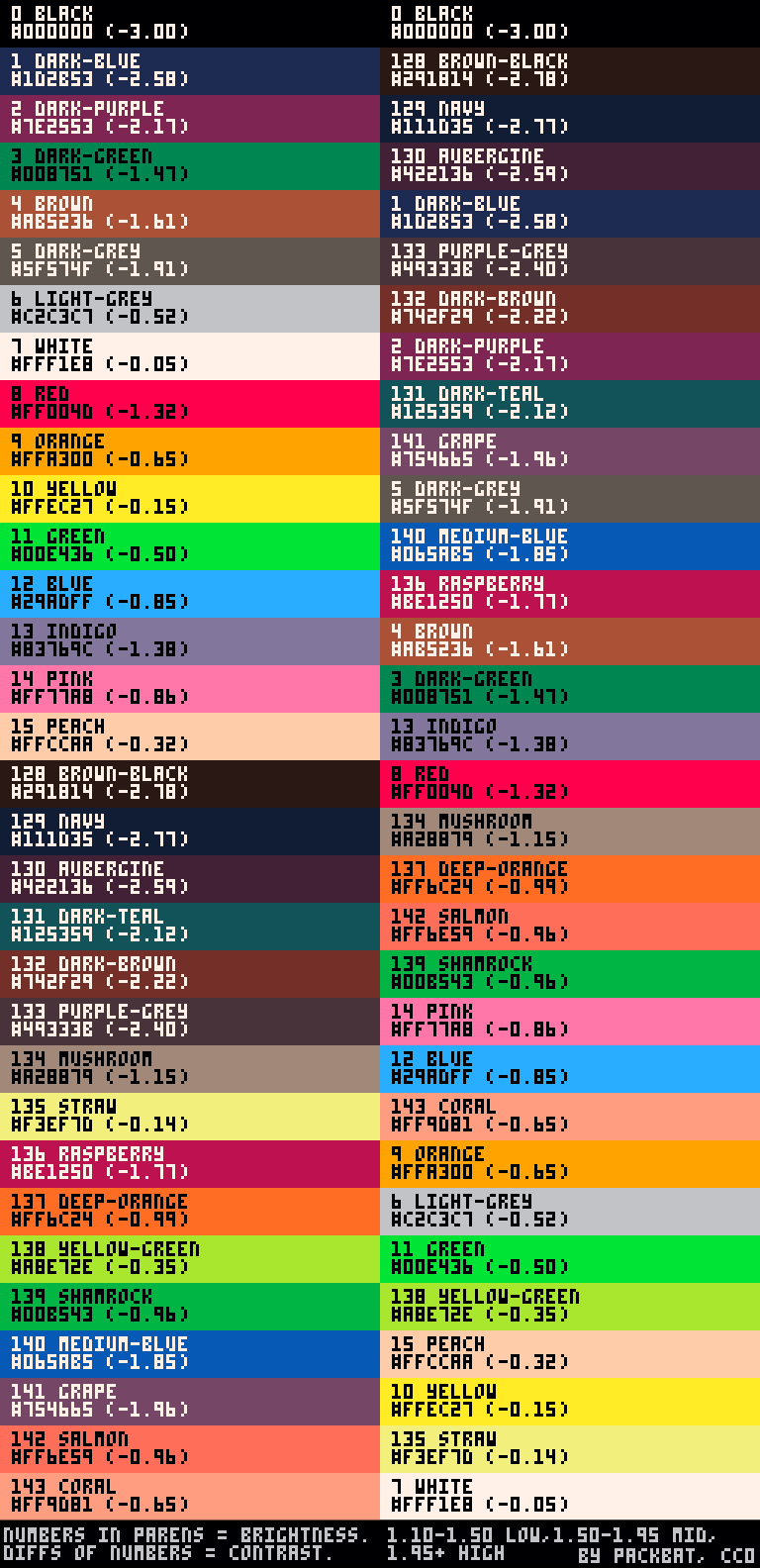

...and thus I have a possible workflow: find your color in the list sorted by index, read out its brightness, add and/or subtract to calculate what brightnesses contrast at the level you need them to (a judgment call, but practice should help), and look at the list sorted by luminance to see what groups of colors at the ends of the lists hit that contrast level.

I hope this is useful to people, or at least a fun toy to explore the full list of PICO-8 colors with.

Edit: For convenience, I've also uploaded a text file with substantially the same information - probably more convenient to work with for many purposes, even if it's less colorful.
