by dw817
Cart #f2ba-5 | 2019-12-13 | Code ▽ | Embed ▽ | License: CC4-BY-NC-SA
8
TO LOAD THIS CART in Pico-8, type:

load #f2ba

Forced "disruption" early.

"Fade To Black." it's not just a video game it's a video game concept and one that's worth learning as it definitely looks good for any game cart where you want to not just jump screens but have one fade to black.

Now at first you might be thinking well HECK in order to do this properly I would need to create 16-different fadeout colors for each of the 15-colors yielding ... 240 colors I have to enter into a table !

Well, yes, you could do it that way, but an easier way is just to fade one color only one step.

And you're probably asking, how can you fade a whole picture just by fading one step ?

Because once you fade that one color to another THEN the next pass you fade that NEW color that just appeared.

Oh ! And yes that certainly is a lot easier. So you can see Fading is really not that difficult to do at all.

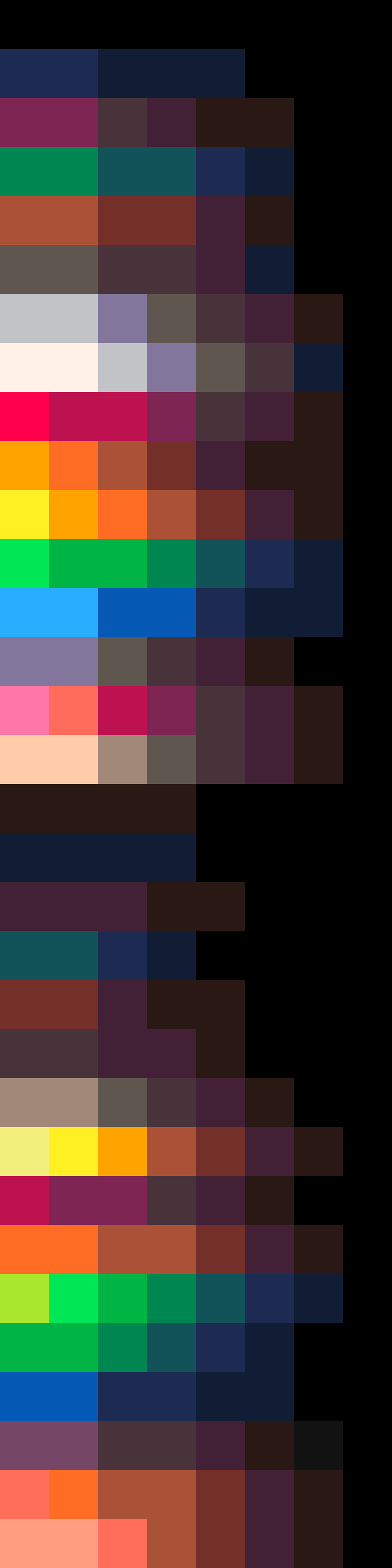

But we're not just going to fade the 15-colors to another of the 15-colors. We have a new palette. Let's make use of it ! And that's just what the cart above does - using the extended palette to give you 7-frames total in a fade.


Change MODE to 1 to test it with 16-color rectangles AND debug information on each color changed.

by dw817
Cart #f2bb-3 | 2019-12-13 | Code ▽ | Embed ▽ | License: CC4-BY-NC-SA
8
TO LOAD THIS CART in Pico-8, type:

load #f2bb

Forced "disruption" early.

Alright ! So to make use of this fade in your code you can access the function FADEOUT() above which is ready to roll.

HOPE THIS HELPS !

P#70954 2019-12-13 04:09 ( Edited 2019-12-13 05:45)

thank you.

P#71294 2019-12-22 01:33

Is this able to fade back in though? The normal method lets u work through ur tables backwards....in this method ur squashing all the colours together. Can u not save the calculations to table and work backwards as well here?

P#108529 2022-03-13 03:53

From my testing the function is setup so it only has 6 iterations before every colour is black. Not sure if that can be expanded on in a meaningful way or if its worth expanding on. I get what its doing but don't fully understand the fade (f below) table.

If it helps anyone, after going through things this is an iteration of the above that makes more sense to me. The function is just called once in update and can be re-used as many times as u want in the gameloop by calling pal(), which is what allows u to see 'anything' again, and then resetting to i=0 within a switch. Examples of switches that do so are in update() time()==4,5. Unless there is a way to fade 'back from' black, I would stick to the normal method just cause it gives u more control. If u want flickering text or like a submarine redmode kind of effect, fade then back on full...fade then bakck on full...looped, this is useful.

function _draw()cls(8) --random graphics, use whatever u want
  if state==0 then
    for i=0,3 do for j=0,3 do rectfill(j*32,i*24,j*32+30,i*24+22,j+i*4) end end
  elseif state==1 then
    for i=0,3 do for j=0,3 do rect(j*32,i*24,j*32+30,i*24+22,j+i*4) end end
  end
end

function _update()fade_test() --call the function in update; rest of the block is optional
  printh(i) printh(fade)
  if time()==4 then pal() end -- pal() resets colours as if no fades happened
  if time()==5 then i=0 end -- i=0 will causes fade to occur again, etc
end

--initial variable values
state=0
fade=0; i=0; fade_spd=2 --2min/4max@30

--to reset from black call pal(); to re-use the fade set i=0
function fade_test()
  if i<6 then
    fade+=1
  else
    --pal() i=0 --loops the fade for flickering effect
    fade=0
    state=1 --testing how it looks if u jump to different menu after the fade; faded till pal() called
    return
  end

  local f,c,p={[0]=0,17,18,19,20,16,22,6,24,25,9,27,28,29,29,31,0,0,16,17,16,16,5,0,2,4,0,3,1,18,
    2,4} --32; this table is 'f'; c and p are the same as local c=nil; local p=nil
  if fade%fade_spd==0 then --in this case it runs ever other frame
    i+=1 -- fully faded in i=6 runs; speed is just how much delay between the 6 runs
    for i=0,15 do
      c=peek(24336+i)
      if c>=128 then c-=112 end
      p=f[c]
      if p>=16 then p+=112 end
      pal(i,p,1)
    end
  end
end
P#108530 2022-03-13 04:27 ( Edited 2022-03-13 04:43)
2

Hi, @Cerb043_4.

Thanks for your interest !

Cart #palbrite-4 | 2022-03-13 | Code ▽ | Embed ▽ | License: CC4-BY-NC-SA
2
TO LOAD THIS CART in immediate mode, type: load #palbrite

In this demo press ⬅️ and ➡️ to both darken and brighten the screen.

I took the liberty of rewriting the code completely. This may cover what you need with 7-levels of brightness.

VVhat's new ?

  • Changed the palette to include deeper fade of color #7 WHITE
  • Compressed the function further, 29 tokens smaller and 39 chars smaller

Here is a single self-contained 4-line function at 64-tokens and 189-chars called palbrite(b) where b is a value from 0 to 6 with 0 maximum darkness and 6 being maximum normal brightness.

You can use it to fade in a picture:

for i=0,6 do
  palbrite(i)
  flip()
end

Or to fade out a picture;

for i=6,0,-1 do
  palbrite(i)
  flip()
end

Or anywhere in-between:

function _update()
  palbrite(britelevel)
  -- additional code
end

I'm going to work with the colors a bit, there may be a way of improving their fading elements. COMPLETE !

P#108564 2022-03-13 21:43 ( Edited 2022-03-14 00:17)

:)

P#111138 2022-05-01 11:39 ( Edited 2022-05-01 11:44)

How did you get such a big screen, @lily.kensa ?

P#111143 2022-05-01 14:36

@dw817

I don't know, either.
Maybe the size of the image is too big?

P#111186 2022-05-02 12:34
