Cart #pausemenu-1 | 2025-07-23 | Embed ▽ | License: CC4-BY-NC-SA

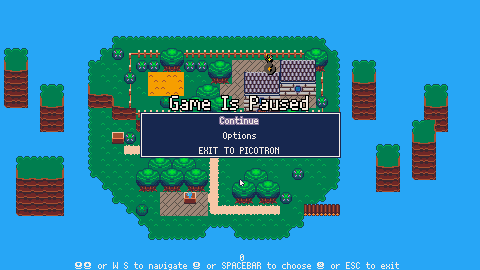

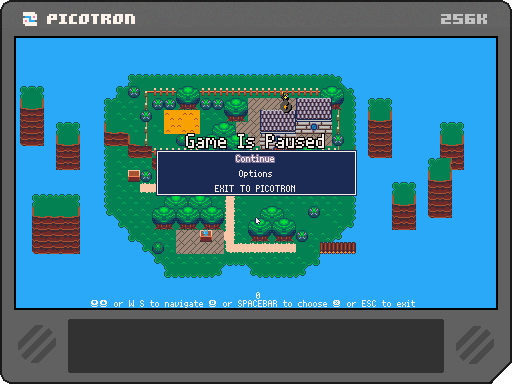

Hi! This is a pause menu template you can use as is or as a jumping off point. It allows you to shut down Picotron(useful for exports) and control the volume. It has support for sub menus and custom actions. It can also be controlled by two players, which is important for STEAM to like your game. It consists of four parts of which you only need to use three.

  • init_pause_menu() initializes all the important stuff, use it to customize your pause menu. All menu elements consist of a title and a corresponding action. e.g.:{"Exit","EXIT"}.
    it also declares a new global called game_paused. Use it to halt the execution of other update functions. Sadly we can't just stop the execution of the program due to our custom menu behavior. Use this function in your _init()
  • update_pause_menu() handles the navigation. You can customize the inputs here.
  • draw_pause_menu() draws the menu. Customize it however you'd like! One important note: It calls camera() to make sure that it is drawn in the center of the screen. It does automatically detect the resolution, though.
  • do_pause_menu_action() is just a helper function for the update function. No need to use it yourself. It is only useful if you want to implement your own menu actions like maps, inventories etc.

You should be able to just save this script and include it into existence. Do let me know all the bugs it causes!

Here is the script in it's best copy&paste-ability:


function init_pause_menu()
	--if you declared your window somewhere else comment this line out and
	--add pauseable=false to your window
	window{pauseable=false,autoclose=true,capture_escapes=true}
	--
	game_paused=false
	pause_menu={
		title="Game Is Paused",
		title_reminder="Game Is Paused",
		items_and_actions={
			{"Continue","BACK"},
			{"Options",{{"<\16\16\16\16\16\16\16\16>","VOLUME"},{"Sound On","TOGGLE_AUDIO"},{"Return","BACK"}}},
			{"Exit Game",{{"Go Back","BACK"},{"Really Exit","EXIT"}}},--comment this line if you don't want to exit accidentally
			{"EXIT TO PICOTRON","DEV_EXIT"},--delete this for your exports
		},
		sounds={--comment this for no sfx or set this to your own sfx if you want UI sounds
			blip=1,
			select_item=2,
			toggle_visibility=3,
		},
		current_item=0,
		current_sub_menu=nil,
	}
end

function update_pause_menu()
	if game_paused then
		if btnp(2) or btnp(2,1) or keyp("w") then
			pause_menu.current_item-=1
			if pause_menu.sounds then
				sfx(pause_menu.sounds.blip)
			end
		elseif btnp(3) or btnp(3,1) or keyp("s") then
			pause_menu.current_item+=1
			if pause_menu.sounds then
				sfx(pause_menu.sounds.blip)
			end
		elseif btnp(5) or btnp(5,1) or key("esc") then
			do_pause_menu_action("BACK")
			if pause_menu.sounds then
				sfx(pause_menu.sounds.blip)
			end
		elseif btnp(1) or btnp(1,1) or btnp(0) or btnp(0,1) or keyp("a") or keyp("d") then
			local action=pause_menu.items_and_actions[(pause_menu.current_item%#pause_menu.items_and_actions)+1][2]
			if pause_menu.current_sub_menu then
				action=pause_menu.current_sub_menu[(pause_menu.current_item%#pause_menu.current_sub_menu)+1][2]
			end
			if action=="VOLUME" then
				if btnp(1) or btnp(1,1) or keyp("d") then
					do_pause_menu_action("VOLUME_UP")
				elseif btnp(0) or btnp(0,1) or keyp("a") then
					do_pause_menu_action("VOLUME_DOWN")
				end
			end
		elseif btnp(4) or btnp(4,1) or keyp("space")  then
			if pause_menu.current_sub_menu then
				do_pause_menu_action(pause_menu.current_sub_menu[(pause_menu.current_item%#pause_menu.current_sub_menu)+1][2],pause_menu.current_sub_menu[(pause_menu.current_item%#pause_menu.current_sub_menu)+1][1])
			else
				do_pause_menu_action(pause_menu.items_and_actions[(pause_menu.current_item%#pause_menu.items_and_actions)+1][2],pause_menu.items_and_actions[(pause_menu.current_item%#pause_menu.items_and_actions)+1][1])
			end
			if pause_menu.sounds then
				sfx(pause_menu.sounds.select_item)
			end
		end
	end
	if keyp("escape")  or btnp(6) or btnp(6,1) then
		if game_paused then
			do_pause_menu_action("BACK")
		else
			game_paused=true
		end
		if pause_menu.sounds then
			sfx(pause_menu.sounds.toggle_visibility)
		end
	end
end

function draw_pause_menu()
--remember to call camera() before this function to nullify your own offset
camera()
	if game_paused then
		local half_screen_height=get_display():height()/2
		local half_screen_width=get_display():width()/2
		local y_item_padding=15
		local y_size=#pause_menu.items_and_actions*y_item_padding
		local y_start=half_screen_height-y_size/2
		local width=200
		local x_start=half_screen_width-width/2
		rectfill(x_start,half_screen_height-y_size/2,x_start+width,half_screen_height+y_size/2,1)
		rect(x_start+1,half_screen_height-y_size/2+1,x_start+width-1,half_screen_height+y_size/2-1,7)
		local length=print("\^w\^t\^o0ff"..pause_menu.title,0,-10000)
		print("\^w\^t\^o0ff"..pause_menu.title,half_screen_width-(length/2),y_start-16,7)
		local counter=0
		if not pause_menu.current_sub_menu then
			for i in all(pause_menu.items_and_actions) do
				local length=print(i[1],0,-1000)
				local pretext=""
				if (pause_menu.current_item%#pause_menu.items_and_actions)+1==counter+1 then
					pretext="\^odff"
				end
				print(pretext..i[1],half_screen_width-length/2,y_start+y_item_padding/4+1+counter*y_item_padding,7)
				counter+=1
			end
		elseif pause_menu.current_sub_menu then
			for i in all(pause_menu.current_sub_menu) do
				local length=print(i[1],0,-1000)
				local pretext=""
				if (pause_menu.current_item%#pause_menu.current_sub_menu)+1==counter+1 then
					pretext="\^odff"
				end
				print(pretext..i[1],half_screen_width-length/2,y_start+y_item_padding/4+1+counter*y_item_padding,7)
				counter+=1
			end
		end
		print("\131\148 or W S to navigate \142 or SPACEBAR to choose \151 or ESC to exit",half_screen_width-165,get_display():height()-8,7)

	end
end

function do_pause_menu_action(what,menuitem_string)
	if type(what)=="table" then
		pause_menu.current_sub_menu=what
		pause_menu.title=menuitem_string
		pause_menu.current_item=0
	elseif what=="BACK" then
		if pause_menu.current_sub_menu then
			pause_menu.current_sub_menu=nil
			pause_menu.current_item=0
			for i=1,#pause_menu.items_and_actions do
				if pause_menu.items_and_actions[i][1]==pause_menu.title then
					pause_menu.current_item=i-1
				end
			end
		else
			game_paused=false
		end
		pause_menu.title=pause_menu.title_reminder
	elseif what=="VOLUME_UP" or  what=="VOLUME_DOWN" then
		--determine current volume
		local cur_volume=peek(0x5538,2)
		if what=="VOLUME_UP" and cur_volume<64 then
			cur_volume=cur_volume+8
		elseif what=="VOLUME_DOWN" and cur_volume>0 then
			cur_volume=cur_volume-8
		end
		if pause_menu.sounds then
			sfx(pause_menu.sounds.select_item)
		end
		poke(0x5538 ,cur_volume)
		poke(0x5539 ,cur_volume)
		--visually represent the change and change the menu items label
		local new_label="<"
		for i=1,8 do
			if cur_volume/8>=i then
				new_label=new_label.."\16"
			else
				new_label=new_label.."-"
			end
		end
		new_label=new_label..">"
		if pause_menu.current_sub_menu then
			pause_menu.current_sub_menu[(pause_menu.current_item%#pause_menu.current_sub_menu)+1][1]=new_label
		else
			pause_menu.items_and_actions[(pause_menu.current_item%#pause_menu.items_and_actions)+1][1]=new_label
		end
	elseif what=="TOGGLE_AUDIO" then
		--poke the global volume setting for both sfx and music (0x40==1.0-->0x00==0.0)
		current_volume=peek(0x5538,2)
		local new_label="Sound Off"
		if current_volume==0 then
			poke(0x5538 ,0x40)
			poke(0x5539 ,0x40)
			new_label="Sound On"
		else
			poke(0x5538 ,0x00)
			poke(0x5539 ,0x00)
		end
		--visually represent the change and change the menu items label
		if pause_menu.current_sub_menu then
			pause_menu.current_sub_menu[(pause_menu.current_item%#pause_menu.current_sub_menu)+1][1]=new_label
		else
			pause_menu.items_and_actions[(pause_menu.current_item%#pause_menu.items_and_actions)+1][1]=new_label
		end
	elseif what=="DEV_EXIT" then
		exit()
	elseif what=="EXIT" then
		send_message(2, {event="shutdown"})
	end
end
